Bend Radius
Specifies the bend radius value for the feature you are constructing.
Bend Relief
Specifies that you want to apply bend relief to the source face from which the flange is constructed. When you set this option, you can also specify whether the bend relief is round or square.
Extend Relief
Specifies that you want to apply bend relief to the entire face when set. When cleared, the bend relief is applied only to the material adjacent to the bend. This option is useful when the flange you are constructing is recessed between adjacent faces.
Square
Specifies that the internal corners of the bend relief are square.
Round
Specifies that the internal corners of the bend relief are round.
Depth
Specifies the depth of the bend relief.
Width
Specifies the width of the bend relief.
Neutral Factor
Specifies the neutral factor for the bend.
Corner Relief
Specifies that you want to apply corner relief to flanges that are adjacent to the flange you are constructing. When you set this option, you can also specify how you want the corner relief applied.

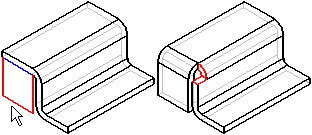

Bend Only
Specifies that corner relief is only applied to the bend portion of the adjacent flanges.

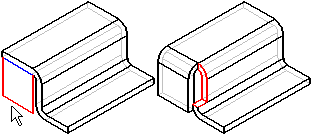

Bend and Face
Specifies that corner relief is applied to both the bend and face portions of the adjacent flanges.

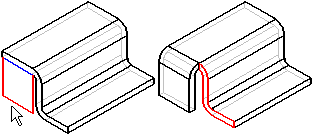

Bend and Face Chain
Specifies that corner relief is applied to the entire chain of bends and faces of the adjacent flanges.
Save Default
Saves the current settings as the default. Saved defaults will be used the next time you use this command. If you do not save the current settings as defaults, the previous default settings will be used.
