Moves or rotates the selected geometry. When you select geometry that is eligible for moving or rotating, the steering wheel or 2D steering wheel handle, the Move command bar, and the Live Rules options are displayed.

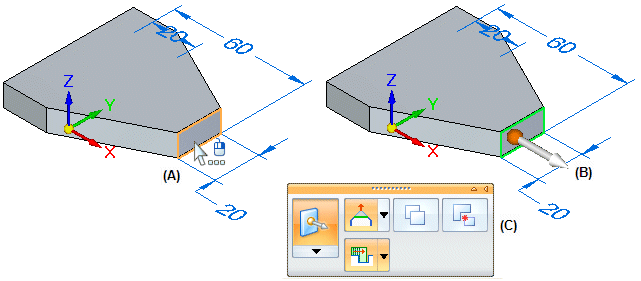

For example, when you click one or more model faces (A) or features, the steering wheel (B) and the Move command bar (C) are displayed.

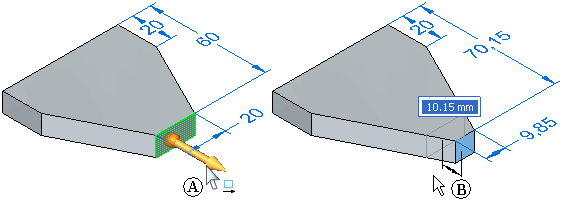

You can then click the primary axis arrow (A) on the steering wheel to move the selected face (B). The adjacent faces update automatically.

You can use the options on command bar to control how the selected faces and adjacent faces react to the move or rotate operation.

For more information, see Modifying models using the steering wheel and 2D steering wheel.
