You can use XpresRoute to create path segments and tubes in an assembly. To access the commands for tubing, while in Assembly, choose Tools→Environs→XpresRoute.

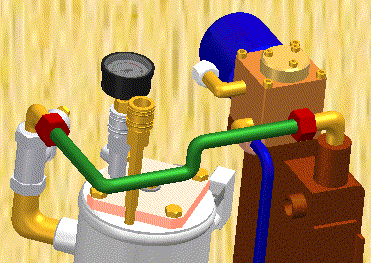

Tube parts are designed in the context of an assembly, so you can directly model them within an assembly, using existing part and assembly geometry to ensure accurate fit and function. Tube parts are fully associative and update with the parts to which they are connected. Tube wire parts are directed parts. They conform to the path segment and the options you use to construct the part. When you make changes to the assembly that cause the path to change, the part will also change.

1. Create a path

   Use the PathXpres command to automatically create a 3D path for the tube.

   To learn how, see Create a tube path with PathXpres.

   Use the Line Segment or Arc Segment command to manually draw the path for the tube.

   To learn how, see Create a tube path.

2. Create the tube

   Use the Tube command to assign pipe attributes and fittings to a path segment that defines the route the pipe should follow.

   To learn how, see Create a tube.

• Creating path segments

• Applying relationships and dimensions to path segment

• Modifying path segments

• Creating the tube

• Opening and editing tube parts

• Managing path display

• Generating tube information

• Transferring tubes between assemblies

• XpresRoute and alternate assemblies
