To edit the properties of the entire add draft feature, select the feature in PathFinder, or position the cursor over a drafted face, and then use QuickPick to select the add draft feature.

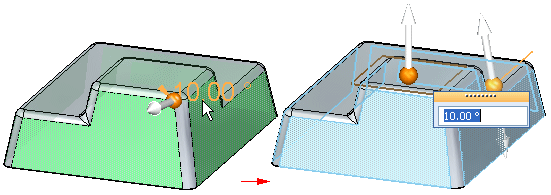

To edit one or more existing drafted faces, select the faces you want to edit in the graphics window. If you change the draft direction for the face, a new add draft feature is added to PathFinder for the faces you edited.

You can use the editing handles to make the following types of edits:

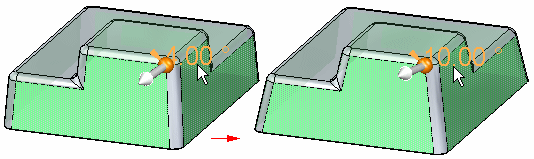

• Use the edit definition handle to change the draft angle.

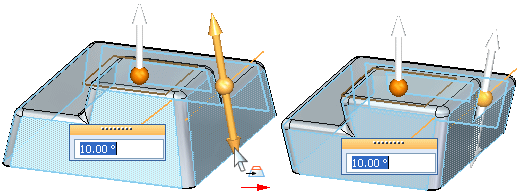

• Use the flip direction handle to flip the draft direction.

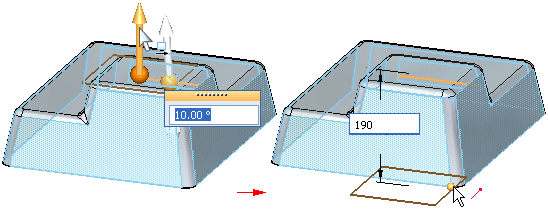

• Use the plane positioning handle to reposition the draft plane, parallel to its original position.

Some draft features cannot be deleted or edited using the draft editing handles:

• Draft features constructed using the Parting Line option

• Draft features constructed using the Parting Surface option

For these types of draft features, a special symbol is displayed adjacent to the draft feature in PathFinder to indicate that the draft feature cannot be deleted or edited. When you position the cursor over the draft feature in PathFinder, a tooltip is displayed to indicate that the feature cannot be edited or deleted.

To edit the draft feature, you can use the Add Draft command to redraft the faces, or you can use the steering wheel handle to move or rotate the faces directly.
