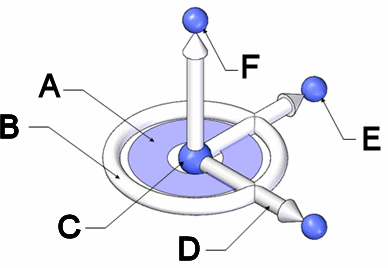

The following illustration and table lists the component name and all functions for each component of the steering wheel. You can use the following left mouse button (LMB) actions to manipulate selected elements with the steering wheel:
LMB drag
LMB + Shift click
LMB + Shift drag
LMB + Ctrl drag
|
Action |
Tool Plane (A) |
Torus (B) |
Origin (C) |
Axis (D) |
Axis Knob (E,F) |
|
LMB+drag |
Move selection in plane. |
Revolve selection around axis. |
Relocate steering wheel origin. |
Start Move Command (along axis) |
Orient Axis. |
|
LMB + Shift click |
Reorient steering wheel by flipping direction of axes. |
None |
None |
None |
None |
|
LMB + Shift drag |
None |
Reposition steering wheel by rotating axes in the plane of the torus |
Reposition origin by keeping the orientation of steering wheel constant. |
Reposition steering wheel along a single axis. |
Reposition steering wheel by rotating about a perpendicular axis. |
|
LMB + Ctrl drag |
None |
None |
None |
None |
Reposition steering wheel by rotating about a perpendicular axis. |
