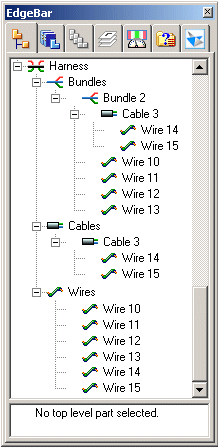

As you create paths and conductors, they are added to PathFinder.

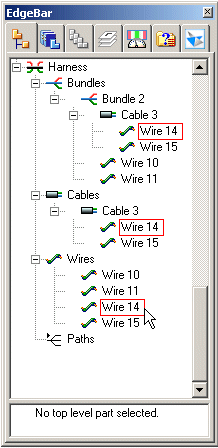

If you move the cursor over a conductor in PathFinder, all occurrences of the conductor are outlined with a red box,

and they are highlighted in the graphics window.

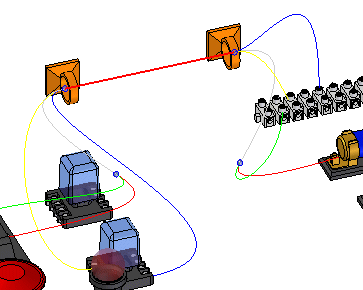

Notice that the wire you highlighted is displayed in a solid color until the point it becomes part of a cable. At that point, the display becomes a dashed line. Also notice that the color of the dashed line changes at the point the cable and wires become part of a bundle.

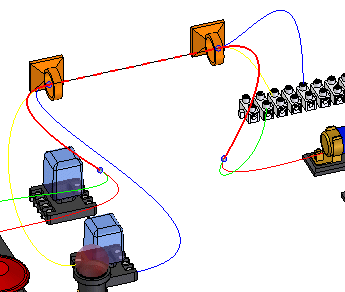

If you position the cursor over a cable in PathFinder, all occurrences of the cable are outlined and the cable highlights in a solid color and the bundle containing the cable highlights as a dashed line. Notice that the wires included in the cable do not highlight.

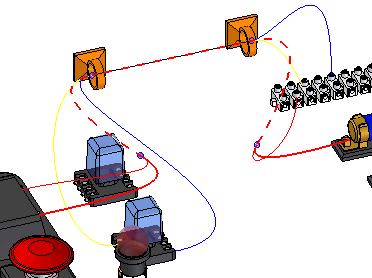

If you position the cursor over a bundle in PathFinder, all occurrences of the bundle are outlined and the bundle highlights in a solid color. Notice that the wires and cables included in the bundle do not highlight.

You can right-click on a conductor in PathFinder to display a list of shortcut commands that allow you to manipulate the conductors.
