Add Break Lines command

The Add Break Lines command defines regions you want to remove in a part view. This creates a broken view of a long, slender part so you can display it at a larger scale.

You can break a part horizontally and vertically in the same view.

You can specify five different types of break lines:

Break line type

Example

Straight

Cylindrical

Short Break - Linear

Short Break - Curved

Long Break

Defining broken view regions

The Add Break Lines command, which is available from the drawing view shortcut menu, defines a pair of break lines for each region of the part you do not want to display. You can use the buttons on the Add Break Lines command bar to specify a horizontal or vertical break line pair. You can define as many break line pairs as you want. After you have defined all the break line pairs, use the Finish button to generate the broken view.

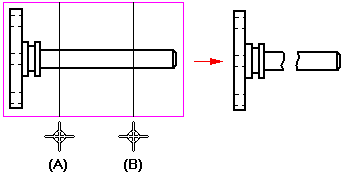

For example, to remove the region as shown in the illustration on the right, you would define a break line pair as shown at (A) and (B).

Displaying broken views

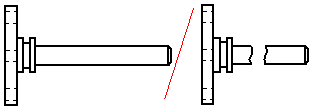

You can use the Show Broken View button on the Drawing View Selection command bar to display a previously defined broken view. When this button is deselected, the view is displayed in the unbroken state.

Modifying broken views

When you want to modify a broken view, first display the entire drawing view using the Show Broken View button on the Drawing View Selection command bar. Then, you can:

You can control the visibility of the break lines using the Hide break lines in broken state option on the General page, Drawing View Properties dialog box.

Aligning break lines between drawing views

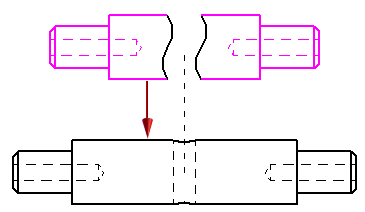

You can align the break lines in a source view with a principal, section, or auxiliary view that is folded from it using the Inherit Break Lines command. This copies the break lines from the broken view to the unbroken view. It also creates an associative relationship between the two views.

The associative relationship ensures that when the break lines in the source view are edited or deleted, the break lines in the folded view are also updated.

You can remove the associative relationship using the Remove Break Line Inheritance command, which is available on the shortcut menu of the folded view.

Dimensioning broken views

Add dimensions and annotations to the broken view after you define the broken view regions. Dimensions on a broken view reflect the actual length of the part.
